M-BUS MASTER / M-BUS CONVERTER


Product Description:

The M-Bus is a bus optimized for the reading of measurement instruments like energy counters, hot and cold water counters, gas, pressure, sensors and actuators, etc. Nowadays, more and more manufacturers implement the M-Bus interface in their counters, making it the ideal basis for remote reading applications. Our M-Bus Master (M-Bus converter) is universal and simple M-Bus Master that can be connected up to 250 M-Bus devices. This device also converts M-Bus signal to RS232 or RS485 so basically you can integrate this device in your remote data acquisition systems with ease.

Product Features:



Ø RS485 transmission direction: automatic

Ø MAX amount of MBus devices: 250 (375mA)

Ø MBus short connection protection: yes

Ø Power supplier: 90-250V ~, 50-60Hz

Ø Mounting type: on DIN rail

Overview:

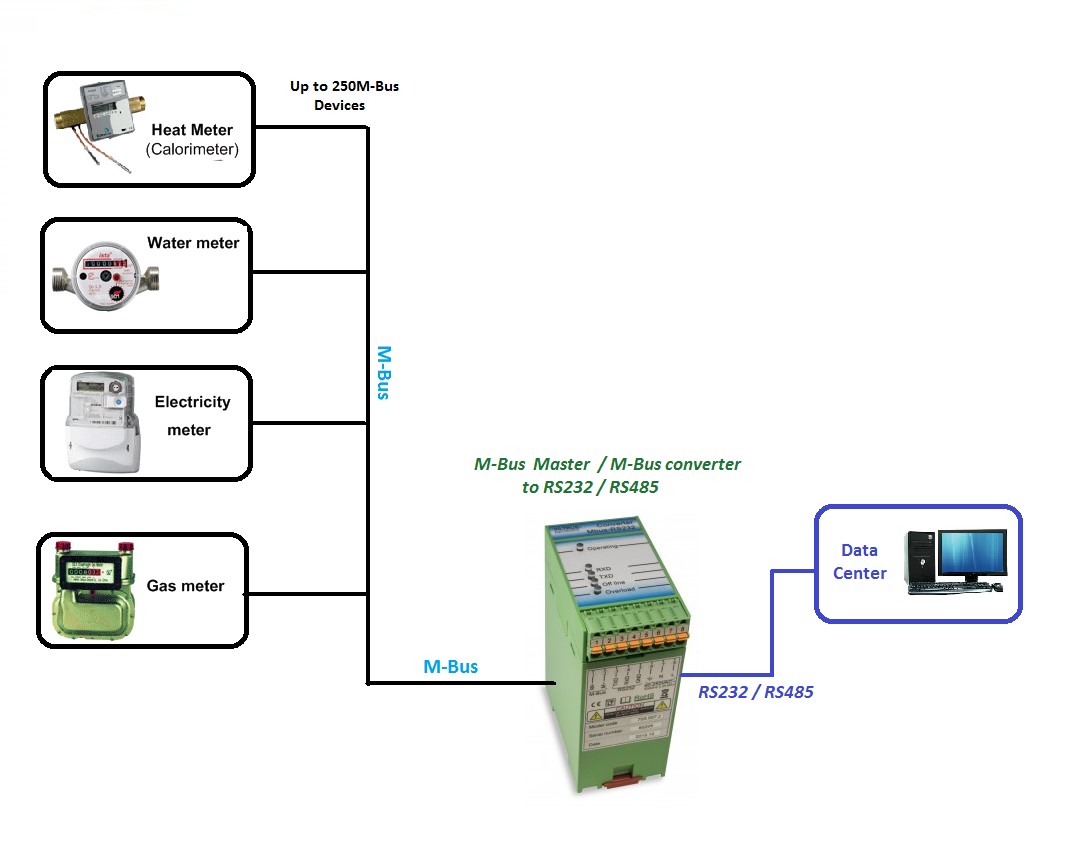

 M-Bus Master / M-Bus Converter is dedicated to convert M-Bus signal to RS232/RS485 and vice versa. Up to 250 M-Bus devices can be connected to M-Bus Master / M-Bus Converter.



 Technical Details:

Interfaces

RS232:

Up to 15m, speed up to 9600 bods

RS485:

Automatic chose of direction, max 32 transivers, speed up to 9600 bods

M-Bus:

Up to 250 loads (375ma)

LED indication

Off line

M-Bus not loaded (ON)

Overload

M-Bus short connection

Operating

M-Bus power (ON/Off)

RXD

M-Bus data transfer

TXD

M-Bus data receive

General

Power supply:

90-250V~, 50-60Hz

Over-voltage protection:

>1000V

Power consumption:

300mA MAX

M-Bus line power:

mark 36-40V, space 24-27V

Adjustment to M-Bus loads:

Automatic

M-Bus short circuit event current:

≥500mA

M-Bus short circuit reaction time:

Configurable, 1-4s.

Recover after short connection:

Configurable,10-60s.


Galvanic isolation between

Power and RS232/RS485

Power and RS232/RS485 Power and M-Bus

M-Bus and RS232/RS485



Physical Characteristics

Dimensions:

105x75x45 mm

Weight:

170 g

Case fixing type:

DIN32

Protection type:

IP20

Climate conditions

Operating temperature:

-20 . +50oC

Storage temperature:

50 . +70oC

Humidity range:

5 – 95%, non-condensing

Warranty

Warranty period:

2 years
