QuickServer - LonWorks - SNMP

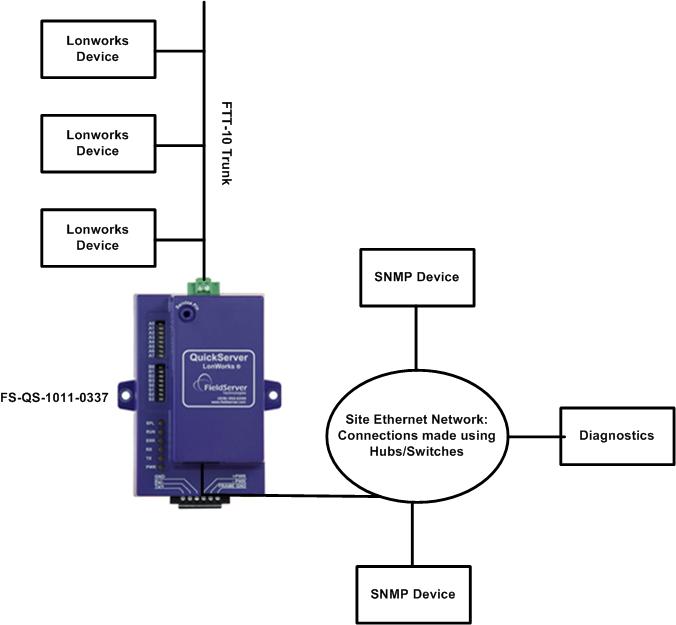

The FS-QS-1011-0337 QuickServer provides a cost-effective, easy to use interface from LonWorks to SNMP.




Protocol Datasheets



Gateway Datasheets


Configuration Manuals





  • This gateway can read LonWorks data from your LonWorks devices and publish it as SNMP data.
  • It can also write to the LonWorks devices.
  • This gateway can also do the reverse, read SNMP data and publish it as LonWorks data.
  • It can also write to the SNMP devices.

In summary, this gateway can act as:

  • Master on the LonWorks network: Hence it is capable of reading data from the various LonWorks slave devices and writing data to them if required.
  • Slave on the LonWorks network: You can use the gateway in this mode if you have a LonWorks master on the network which would be reading data from the gateway.
  • Client/Master on the SNMP network: Hence it is capable of reading data from the various SNMP devices and writing data to them if required.
  • Server/Slave on the SNMP network: The gateway can be configured to be a server of data values; hence another SNMP client can read data from the gateway and write data into the gateway.

SNMP Traps:

This gateway can send and receive SNMP traps.

 QuickServer Key Features:

  • Ability to interface up to 250 points of common BAS protocols
  • Multi-configuration capability; specific configurations selectable via DIP switches or software
  • Flat panel mount standard, DIN rail mount option
  • DIP switches to select baud rate or node ID on the fly
  • LonMark Certified

LonWorks driver:

  • The FieldServer LonWorks device can be used with explicit and/or implicit addressing and can be bound to a maximum of 15 other LonWorks nodes. The QuickServer can handle a maximum of 250 explicitly addressed nodes. The QuickServer currently supports a default of 63 network variable aliases to avoid network variable connection constraints.
  • QuickServer can transfer data (Network Variables) in two ways
    • It can poll (request data from) other devices at a regular interval
    • It can send Network Variable Updates at a regular interval, when data has changed, or, in throttled mode using maximum and minimum send time and change on delta parameters
  • QuickServer can be configured by Network Management Tools such as LonMaker. For binding (implicit mode), a Network Management Tool is necessary to create the bindings.
  • The External Interface File (.XIF) for the QuickServer can be uploaded from FieldServer for a particular application
  • Driver type: Client or Server
  • Connection type: FTT-10 Free Topology Network Transceiver
  • Data types supported:
    • Integers (Long, short, signed, unsigned)
    • Float
    • Byte
    • Bit

SNMP driver:

  • The client can be configured to read values specified by their SNMP Object Identifiers (OID's), which are defined in the MIB file (Management Information Base) of the target device. The FieldServer MIB file sets out the OID's to use. The FieldServer Enterprise ID is 6347. MIB files are generated automatically from the FieldServer configuration files. A selection of standarad MIB-2 OID's are supported to allow interaction with popular Network Management packages.
  • When acting as a SNMP Agent (server) the SNMP driver allows SNMP Get and Set commands to access Data Arrays using the Integer type. The SNMP v1 protocol does not make provision for Floats
  • Driver type: Client or Server
  • Connection type: Ethernet 10Base-T, 100Base-T
  • Data types supported:
    • STRING
  • LonWorks is a trademark of Echelon Corporation


How to configure the FieldServer gateway?

-We will configure the gateway for you based on your requirement and support you during commissioning of the gateway, so you do not  have to worry about configuring the FieldServer gateway.

-However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.

-Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).

-In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:

                Node ids of the slave devices

                IP addresses/device address of the slave devices

                Baud rate, parity, stop bits for serial communication

                Scan rates

- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.

-For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
