Lonworks to BACnet MSTP Gateway || Lonworks to BACnet MSTP Conversion
ProtoConvert recommends the FieldServer gateways for your Lonworks protocol conversion requirements. We configure and sell FieldServer gateways. We will help you find the right solution for your requirement and support you with the configuration and commissioning.

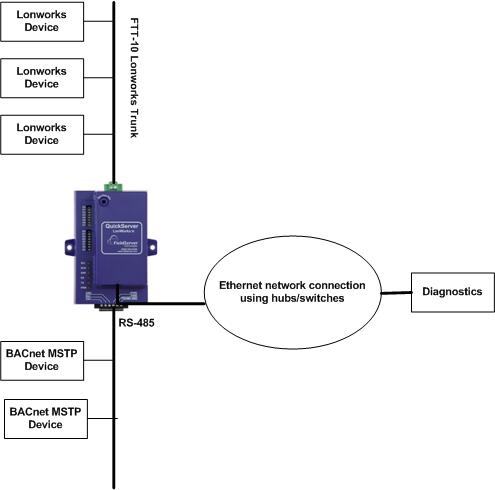

This gateway can read Lonworks data from your Lonworks devices and publish it as BACnet MSTP data.

It can also write to the Lonworks devices.

This gateway can also do the reverse, read BACnet MSTP data and publish it as Lonworks data.

It can also write to the BACnet MSTP devices.

In summary, this gateway can act as:

Client/Master on the Lonworks network: Hence it is capable of reading data from the various Lonworks slave devices and writing data to them if required.

Server/Slave on the Lonworks network: You can use the gateway in this mode if you have a Lonworks master on the network which would be reading data from the gateway.

Client/Master on the BACnet MSTP network: Hence it is capable of reading data from the various BACnet MSTP devices and writing data to them if required.

Server/Slave on the BACnet MSTP network: The gateway can be configured to be a server of data values, hence another Lonworks client can read data from the gateway and write data into the gateway.

Downloads

Protocol Datasheets

Hardware Datasheets

QuickServer

FS-3510

Configuration Manuals




Question/Purchase


FieldServer Gateways for LonWorks - BACnet MSTP:

This table lists the different FieldServer hadware platforms which support LonWorks-BACnet MSTP conversion. You can make a choice depending on the number of serial/ethernet /lonworks ports you require and the point count capacity being considered.

We will help choose the right gateway model for you. Please contact us with your detailed requirement.

Device Type

Serial Ports

Lonworks Ports

Ethernet Ports

Base Point Count Capacity

Extended Point Count Capacity

 QuickServer Lonworks

1xRS-485

1

1

250

1000

 Enhanced QuickServer Lonworks

1xRS485 or RS232

 1

500

1000

FS-B3510

2xRS-485

2xRS-232

1xRS-232 System Port

1

2

 1000

10000



How to configure the FieldServer gateway?

-We will configure the gateway for you based on your requirement and support you during commissioning of the gateway, so you do not have to worry about configuring the FieldServer gateway.

-However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.

-Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).

-In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:

                Node ids of the slave devices

                IP addresses/device address of the slave devices

                Baud rate, parity, stop bits for serial communication

                Scan rates

- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.

-For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
