Metasys N2 to Simplex 4100 Gateway||Metasys N2 to Simplex 4100 Conversion

ProtoConvert recommends the FieldServer gateway for your Metasys N2 protocol conversion requirements. We configure and sell FieldServer gateways. We will help you find the right solution for your requirement and support you with the configuration and commissioning.

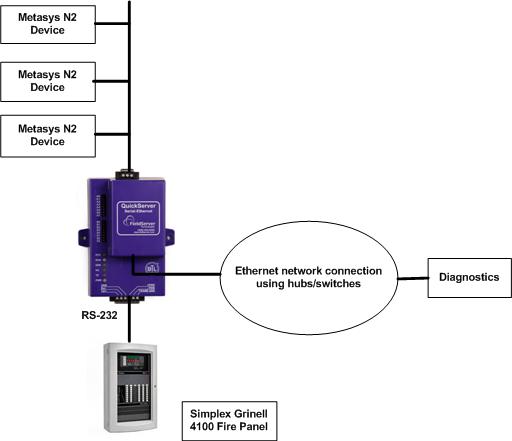

This gateway can read/write Simplex 4100 data and publish it as Metasys N2 data.

In summary, this gateway can act as:

Client/Master on the Metasys N2 network: Hence it is capable of reading data from the various Metasys N2 slave devices and writing data to them if required.

Server/Slave on the Metasys N2 network: You can use the gateway in this mode if you have a Metasys N2 master on the network which would be reading data from the gateway.

Client/Master on the Simplex 4100 network: Hence it is capable of reading data from the various Simplex 4100 devices and writing data to them if required.



Downloads

Protocol Datasheets

Metasys N2

Simplex Grinell

Hardware Datasheets

QuickServer

FS-3510

Configuration Manuals

  Metasys N2

Simplex Grinell



FieldServer Gateways for BACnet IP - Simplex 4100:

This table lists the different FieldServer hadware platforms which support BACnet IP - Simplex 4100 conversion. You can make a choice depending on the number of serial/ethernet /lonworks ports you require and the point count capacity being considered.

We will help choose the right gateway model for you. Please contact us with your detailed requirement.

Device Type
Serial Ports
Lonworks Ports
Ethernet Ports
Base Point Count Capacity
Extended Point Count Capacity
 Enhanced QuickServer
2

 1 500
1000
FS-B3510

2xRS-485

2xRS-232

1xRS-232 System Port

1 2  1000 10000

 How to configure the FieldServer gateway?

-We will configure the gateway for you based on your requirement and support you during commissioning of the gateway, so you do not  have to worry about configuring the FieldServer gateway.

-However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.

-Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).

-In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:

                Node ids of the slave devices

                IP addresses/device address of the slave devices

                Baud rate, parity, stop bits for serial communication

                Scan rates

- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.

-For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
