Modbus TCP to Profibus DP Gateway || Modbus TCP to Profibus DP Conversion
ProtoConvert recommends the FieldServer gateway for your Modbus TCP protocol conversion requirements. We configure and sell FieldServer gateways. We will help you find the right solution for your requirement and support you with the configuration and commissioning.

This gateway can read Profibus DP data from your Profibus DP devices and publish it as Modbus TCP data.

It can also write to the Profibus DP devices.

This gateway can also do the reverse, read Modbus TCP data and publish it as Profibus DP data.

It can also write to the Modbus TCP devices.

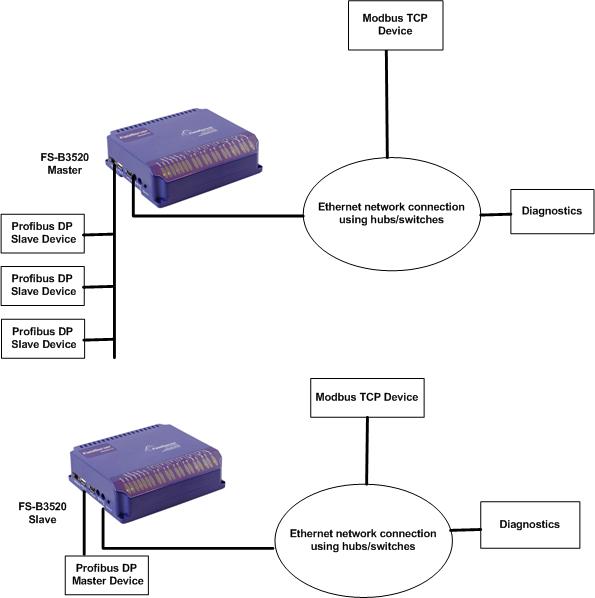

In summary, this gateway can act as:

Client/Master on the Profibus DP network: Hence it is capable of reading data from the various Profibus DP slave devices and writing data to them if required.

Server/Slave on the Profibus DP network: You can use the gateway in this mode if you have a Profibus DP master on the network which would be reading data from the gateway.

Client/Master on the Modbus TCP network: Hence it is capable of reading data from the various Modbus TCP devices and writing data to them if required.

Server/Slave on the Modbus TCP network: The gateway can be configured to be a server of data values, hence another Modbus TCP client can read data from the gateway and write data into the gateway.

Downloads

Protocol Datasheets


Modbus TCP

Profibus DP Master

Profibus DP Slave


Hardware Datasheets

                    QuickServer

FS-3510

Configuration Manual
                         Profibus DP Master

Profibus DP Slave

Question/Purchase


FieldServer Gateways for Modbus TCP - Profibus DP

This table lists the different FieldServer hardware platforms which support Modbus TCP - Profibus DP conversion. You can make a choice depending on the number of serial/Ethernet /lonworks ports you require and the point count capacity being considered.

We will help choose the right gateway model for you. Please contact us with your detailed requirement.

Device Type

Serial Ports

Lonworks Ports

Ethernet Ports

Base Point Count Capacity

Extended Point Count Capacity

FS-B3510

2xRS-485

2xRS-232

1xRS-232 System Port

1

2

 1000

10000



How to configure the FieldServer gateway?

-We will configure the gateway for you based on your requirement and support you during commissioning of the gateway, so you do not have to worry about configuring the FieldServer gateway.

-However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.

-Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).

-In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:

                Node ids of the slave devices

                IP addresses/device address of the slave devices

                Baud rate, parity, stop bits for serial communication

                Scan rates

- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.

-For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
