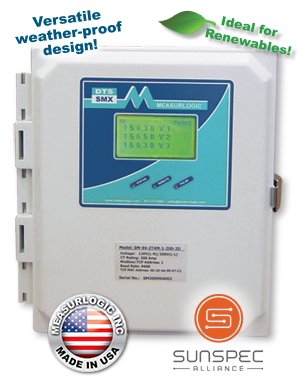

DTS SMX

FEATURES

  • Line powered single / three phase energy sub-meter
  • Class 0.5 Energy Meter** (ANSI C12.20) - “Revenue grade”
  • NEMA 4x weather-proof surface mount enclosure
  • Bi-directional for renewable systems (NET metering)
  • Interfaces with “safe” mV, RopeCTs or 1/5A CTs
  • Fused Voltage Terminals included for quick installation
  • Easy access voltage and current terminations
  • Embedded Ethernet connectivity - Modbus/TCP, BACnet/IP, SNMP or DNP 3.00
  • RS-485 connectivity - Modbus RTU or BACnet MS/TP
  • Communications setting via DIP switches for Modbus RTU
  • LonWorks FT-10 communications
  • Pulse output standard
  • 2 digital status/counter inputs OR digital outputs - optional
  • User configurable using DTS Config software
  • User-definable Modbus register area
  • Compatible with PowerStudio Energy management and control software suite
  • SunSpec Alliance certified
  • Designed and Manufactured in the USA. Complies with Buy American Provisions of ARRA Section 1605




Download Datasheet

DTS SMX Brochure

DTS SMX

Surface Mount 3 Phase Energy Sub-meter



FEATURES

  • Line powered single / three phase energy sub-meter
  • Class 0.5 Energy Meter** (ANSI C12.20) - “Revenue grade
  • NEMA 4x weather-proof surface mount enclosure
  • Bi-directional for renewable systems (NET metering)
  • Interfaces with “safe” mV, RopeCTs or 1/5A CTs
  • Fused Voltage Terminals included for quick installation
  • Easy access voltage and current terminations
  • Embedded Ethernet connectivity - Modbus/TCP, BACnet/IP, SNMP or DNP 3.00
  • RS-485 connectivity - Modbus RTU or BACnet MS/TP
  • Communications setting via DIP switches for Modbus RTU
  • LonWorks FT-10 communications
  • Pulse output standard
  • 2 digital status/counter inputs OR digital outputs - optional
  • User configurable using DTS Config software
  • User-definable Modbus register area
  • Compatible with PowerStudio Energy management and control software suite
  • SunSpec Alliance certified
  • Designed and Manufactured in the USA. Complies with Buy American Provisions of ARRA Section 1605

**
