DGBox as a BACnet MSTP Data Logger


Application

  • Gather data from BACnet MSTP based field devices
  • Store the collected data for future analysis.
  • Comes with a 4 GB Micro SD card. Has an additional SD Card expansion slot that supports another 64 GB
  • Recommended point capacity is 1000 data points. Actual capacity depends on the protocols used and other settings.
  • Create dashboards to represent live values. Objects on the dashboards can be animated and are bound to live data points
  • Get instant alerts and visual representation for alarm conditions. Supports email based alerts
  • Take action by sending back control signals to equipment
  • Carry out analysis using trend screens and stored data values
  • Send point updates to a given destination URL using HTTP
  • Configuration done by inbuilt web pages - no additional software required
  • On board wi-fi support.


Download Datasheet

Download information brochure

Set up a live demo appointment

 -Question/Purchase

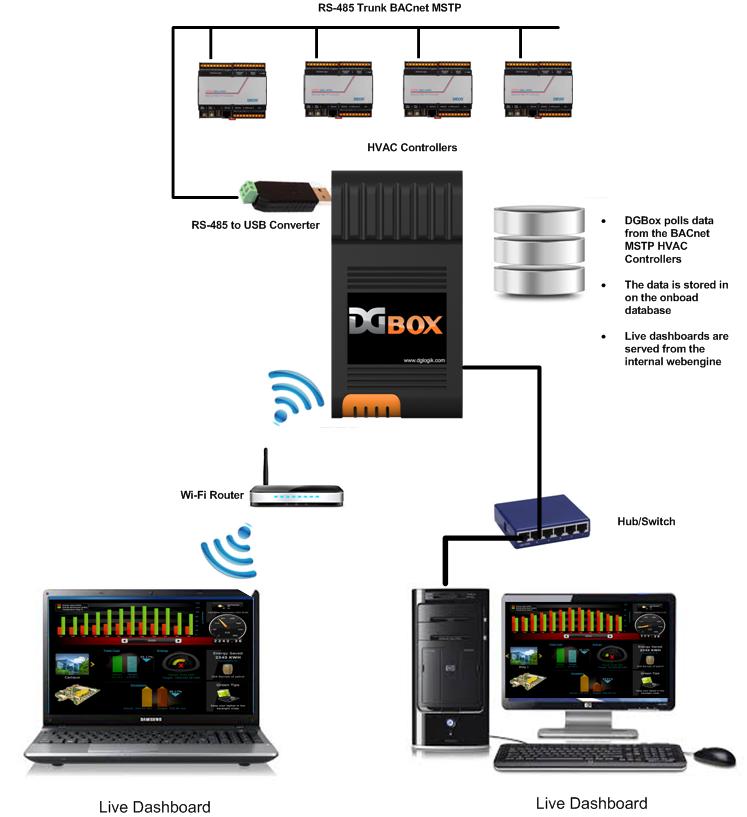

The DGBox can connect to BACnet MSTP field Devices over RS-485 or RS-232 (using a USB - RS-485 converter). In the following example we see how the DGBox can connect to devices such as HVAC controllers, actuators etc on site to collect data and provide it on a dashboard.
