SCADA Data Gateway for IEC, Modbus, DNP3

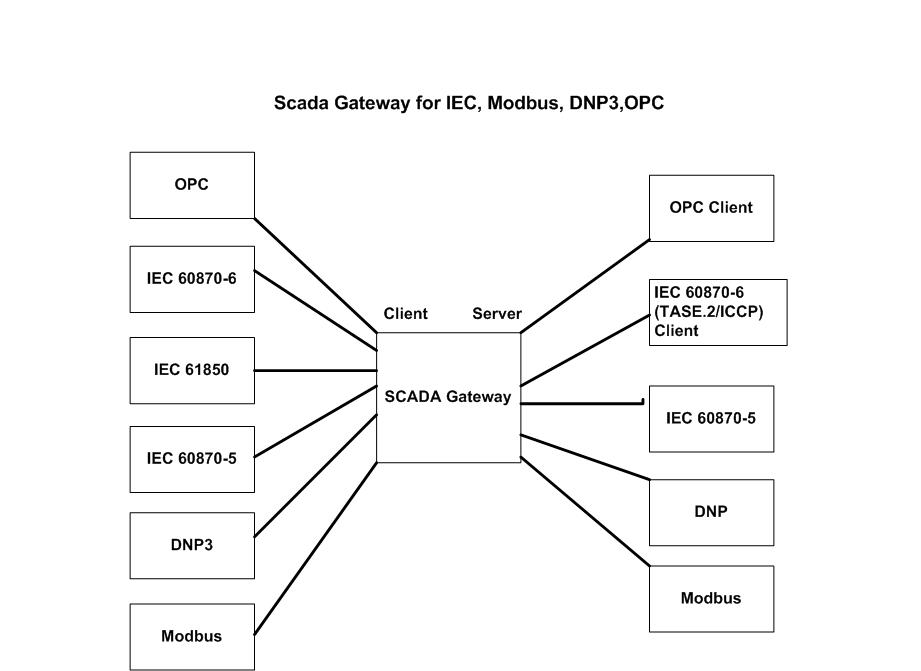

The SCADA Data Gateway is basically a windows based application. It can collect data from OPC Server, IEC 60870-6 (TASE.2/ICCP), IEC 61850 Server, IEC 60870-5, DNP3, or Modbus Slave devices and supplies it to the device which support OPC Client, IEC 60870-6 (TASE.2/ICCP) Client, IEC 60870-5, DNP3, and/or Modbus communication protocols.



  • Translate to other protocols such as SNMP by combining the SDG with another OPC Client/Server
  • It communicate through standard Serial port or Ethernet port on a PC which supports Windows 7, Windows Vista, Windows XP SP2, Windows 2008 Server, Windows 2003 Server, or Windows XP Embedded. Both 32- and 64-bit versions of Windows.
  • Typical Windows-based programs compatible with the SDG include: Iconics GENESIS64™/GENESIS32™, GE Proficy HMI/SCADA iFIX™ and CIMPLICITY™, Wonderware® InTouch HMI, Siemens SIMATIC WinCC, Microsoft® Visual Basic™, or any other program which is capable of acting as an OPC Client/Server.
Protocol Supported
  • OPC Data Access Server 1.0a, 2.00, 2.05a, and 3.0 (OPC Certified™)
  • OPC Data Access Client 2.00 and 2.05a (OPC Certified™)
  • OPC Alarms and Events 1.00, 1.02, and 1.10 Server (OPC Certified™)
  • OPC Alarms and Events 1.00, 1.02, and 1.10 Client
  • OPC XML Data Access Server
  • ODBC Client
  • DNP3 – Serial and TCP/IP (Conformance tested per DNP3 Intelligent Electronic Device (IED) Certification Procedure Subset     Level 2, Rev. 2005)
  • IEC 61850 Client including: 7-410 (Hydro), 7-420 (DER) & 61400-25 (Wind)
  • IEC 60870-6 (TASE.2/ICCP) Server
  • IEC 60870-5-101 – Basic Telecontrol Tasks
  • IEC 60870-5-103 – Protection Equipment
  • IEC 60870-5-104 – Network access for -101
  • Modbus Serial ASCII/RTU, Modbus Plus, and Modbus TCP
FEATURES
  • Supports DNP3 Secure Authentication
  • Supports selective logging of event data into a time-stamped Sequence of Events (SOE) log file.
  • The Communication Protocol Analyzer Window displays and decodes transmitted and received messages.
  • Allows translation between data types and control methods from different protocols. Supports mapping of points between Master and Slave, two Master, and/or two Slave protocol components.
