A great solution to interconnect JCI MetasysN2 Devices on other protocol Networks like BACnet, Modbus, Lonworks, SNMP, M-Bus, KNX and others.

Downloads Protocol Datasheets Metasys N2 Hardware Datasheets QuickServer FS-3510 Configuration Manuals   Metasys N2

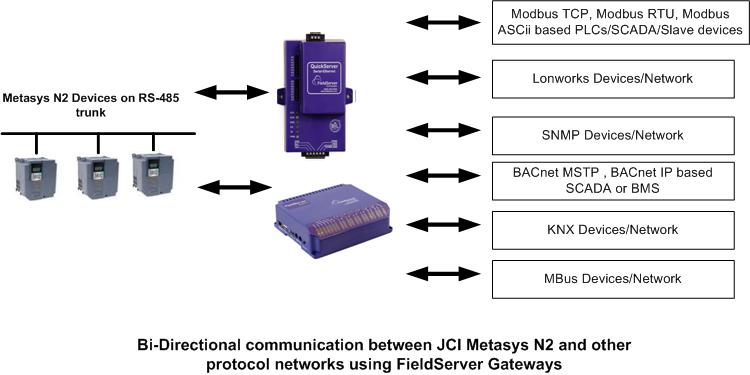

• FieldServer JCI MetasysN2 Gateways - a great solution to enable two way communication between:

1.     Between a JCI MetasysN2 network/device and a different protocol network like BACnet, Modbus, Lonworks, SNMP, Metasys N2, M-Bus or KNX.

• FieldServer JCI MetasysN2 Gateway models have multiple RS-485 ports, Ethernet ports and Lonworks ports (depending on the model). Hence it is possible to interconnect devices on different serial, Ethernet and Lonworks protocols together.

Popular combinations for Metasys N2 gateways

FieldServer Hardware platforms supporting JCI MetasysN2 protocol

How to configure the FieldServer Gateway?

• We will configure the Gateway for you based on your requirement and support you during commissioning of the Gateway, so you do not  have to worry about configuring the FieldServer Gateway.
• However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.
• Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).
• In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:

1. Node ids of the slave devices
2. MSTP addresses/device address of the slave devices
3. Baud rate, parity, stop bits for serial communication
4. Scan rates

• And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.
• For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
