A great solution to interconnect EthernetIP Devices on other protocol Networks like Modbus, Bacnet, Lonworks, SNMP, Metasys N2, M-Bus, KNX and others
|
Downloads
Protocol Datasheets
Ethernet/IP
Hardware Datasheets
QuickServer
FS-3510
Configuration Manuals
Ethernet/IP Manual |

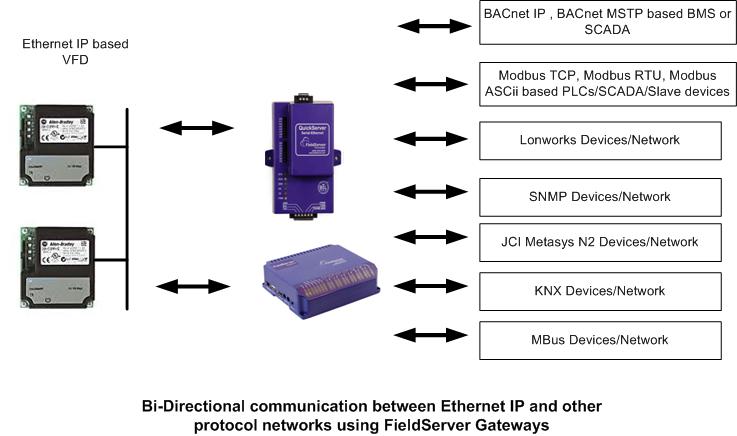

FieldServer’s Ethernet/IP Gateway is a great solution to enable two way communication between Ethernet/IP network/device and a different protocol network like like BACnet,Modbus, Lonworks, SNMP, Metasys N2, MBus or KNX.
Fieldserver Modbus Gateway models have multiple RS-485 and RS-232 ports and Ethernet ports. Hence it is possible to interconnect devices on different serial and Ethernet protocols together.
Popular combinations for Ethernet/IP gateways
|
Ethernet IP to BACnet/IP Gateway
|
Ethernet IP to Modbus ASCii Gateway
|
|
Ethernet IP to BACnet MSTP Gateway
|
Ethernet IP to Modbus RTU Gateway
|
|
Ethernet IP to DF1 Gateway
|
Ethernet IP to Modbus TCP Gateway
|
|
Ethernet IP to DNP3 Ethernet Gateway
|
Ethernet IP to Notifier 3030 Gateway
|
|
Ethernet IP to DNP3 Serial Gateway
|
Ethernet IP to Omon FINS Gateway
|
|
Ethernet IP to HTTP Gateway
|
Ethernet IP to OPC Gateway
|
|
Ethernet IP to KNX Gateway
|
Ethernet IP to Profibus Gateway
|
|
Ethernet IP to Lonworks Gateway
|
Ethernet IP to Simplex 4100 Gateway
|
|
Ethernet IP to MBus Gateway
|
Ethernet IP to SNMP Gateway
|
|
Ethernet IP to Metasys N2 Gateway
|
Ethernet IP to XML Gateway
|
FieldServer Hardware platforms supporting Ethernet/IP protocol
|
Device type
|
RS 485/232 ports
|
Lonworks Ports
|
Available Ethernet ports
|
Base Point count capacity
|
Extended Point count capacity
|
|
QuickServer
|
2
|
0
|
1
|
250
|
1000
|
|
QuickServer Lonworks
|
1
|
1
|
1
|
250
|
1000
|
|
Enhanced QuickServer
|
2
|
0
|
1
|
500
|
1000
|
|
Enhanced QuickServer Lonworks
|
1
|
1
|
1
|
500
|
1000
|
|
FS-B2010
|
1
|
0
|
1
|
500
|
5000
|
|
FS-B2011
|
1
|
1
|
1
|
500
|
5000
|
|
FS-B2510
|
2
|
0
|
1
|
500
|
5000
|
|
FS-B3510
|
5
|
1
|
2
|
1000
|
10000
|
How to configure the FieldServer Gateway?
- We will configure the Gateway for you based on your requirement and support you during commissioning of the Gateway, so you do not have to worry about configuring the FieldServer Gateway.
- However, it is very helpful to know how to configure the devices. All the required tools and supporting product manuals with be provided completely free of cost with your purchase.
- Configuration of the FieldServer is done using a '.csv' file. This file can be edited using any text editor (example Microsoft excel).
- In this file we need to enter information for the Client and Server side interfaces of the FieldServer. This includes but is not limited to:
- Node ids of the slave devices
- MSTP addresses/device address of the slave devices
- Baud rate, parity, stop bits for serial communication
- Scan rates
- And finally we need to create an internal mapping that would map each data value read on the client side to a data value on the server side.
- For detailed information on configuration please get in touch with us and review the configuration manual on top of this page
