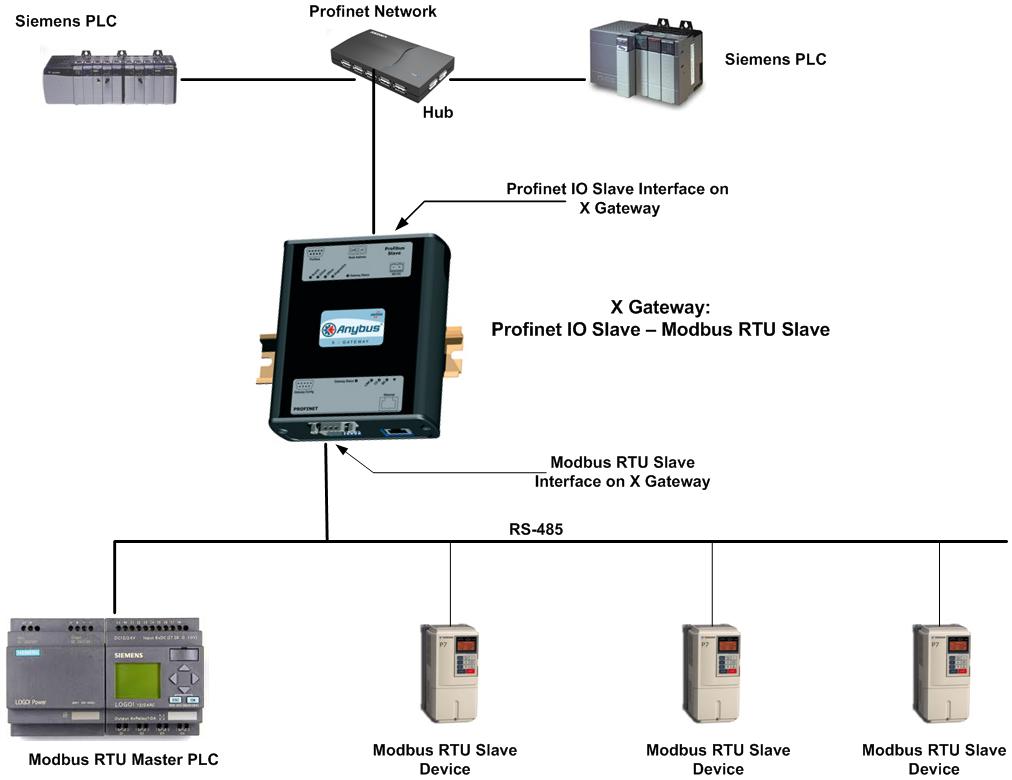

ModbusRTU Slave to ProfinetIO Device
  • Anybus X gateway will copy input/output data in both directions, thus enabling the data availability on both the networks.
  • Default Input/output configuration is 20 bytes input and 20 bytes output.
  • Default configuration settings can be changed simply by using RS232 configuration port and a standard terminal interface on a PC eg. Hyper terminal.
  • It enables fast and dynamic transfer of fieldbus data to and from e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows. It is because Anybus OPC Server is supported and included with this X-gateway.
  • Ethernet interface consists of an embedded Ethernet/IP 10/100 Mbit/s interface with IT functionality such as SSI-scripts, WEB-server, FTP-server, Email client, Flash file system, Telnet etc.
  • It is built on a dedicated 32 bit RISC micro processor (+60 MIPS) ensuring fast and secure Ethernet performance. The EtherNet/IP interface module is certified by the ODVA and has proven compatibility with leading PLC´s, HMI´s etc
  • The Profinet IO based on the Siemens Profinet IO software technology is a complete solution for a Profinet IO slave Device.
  •  The Profinet IO baudrate is 100Mbit/s (full duplex). The IP-address and additional IP-settings is easily configured with the Anybus IPconfig utility for Windows. Some another ways to set the IP-address are either via Profinet configuration tool or DHCP.
  • There are three diagnostic LEDs provided on the module which will continuously indicate the actual Profinet IO status and possible error messages. The Profinet IO interface uses a normal RJ45 connector for the bus connection.
  •  IT-functions like E-mail client, WEB-server, FTP-server are also supported. The IT functions can be used simultaneously with the Profinet IO communication.


KEY FEATURES
  •   Galvanical isolation between the two Ethernet interfaces
  •   Logical isolation between the two Ethernet interfaces
  •   Ethernet/IP level 2 I/O Server CIP
  •   Support for AnyBus IPconfig utility for easy TCP/IP set up
  •   SSI scripts used for easy display/control of process data on webpages
  •   Gateway diagnostics via WEB-pages
  •   E-Mail Client, FTP & Telnet Server
  •   Profinet IO and IT functions
  •   Two twisted pair RJ45 connections
  •   2 x 1 Mbyte storage space on Flash disk
  •   TCP/IP settings configurable with Profinet config tool, Anybus IPconfig or DHCP
  •   Support for Anybus OPC Server
TECHNICAL SPECIFICATIONS
  • Size: 126 mm x 110 mm x 42 mm
  • Power Supply: 24 VDC (±10%)
  • Temperature: 0-65°C°C
  • Current Consump: max 300 mA
  • Baud Rate: 100 Mbit/s
  • I/O Input: Default 20 bytes, max 512 bytes
  • I/O Output: Default 20 bytes, max 512 bytes
  • Mech Rating: IP20/Nema1
  • Config Method: Windows Hyper Terminal, EDS and GSD files
  • UL certification: E203225, Listed 67AM, UL-1604 Class 1, Div 2, GP A, B, C, D, Temp Code T4
  • ATEX certification: ATEX 135419, II 3 G, EEx nL IIC T4, DEMKO 03
  • Power supply connect: 2-pole 5.08 mm Phoenix pluggable screw connector
  • Bus connectors: RJ45
  • Ethernet/IP address: Any valid IP-address
  • Ethernet/IP baud rate: 10/100 Mbit/s
  • Profinet baud rate: 100 Mbit/s
  • Profinet address: Any valid IP address
  • Order Code: AB7649
